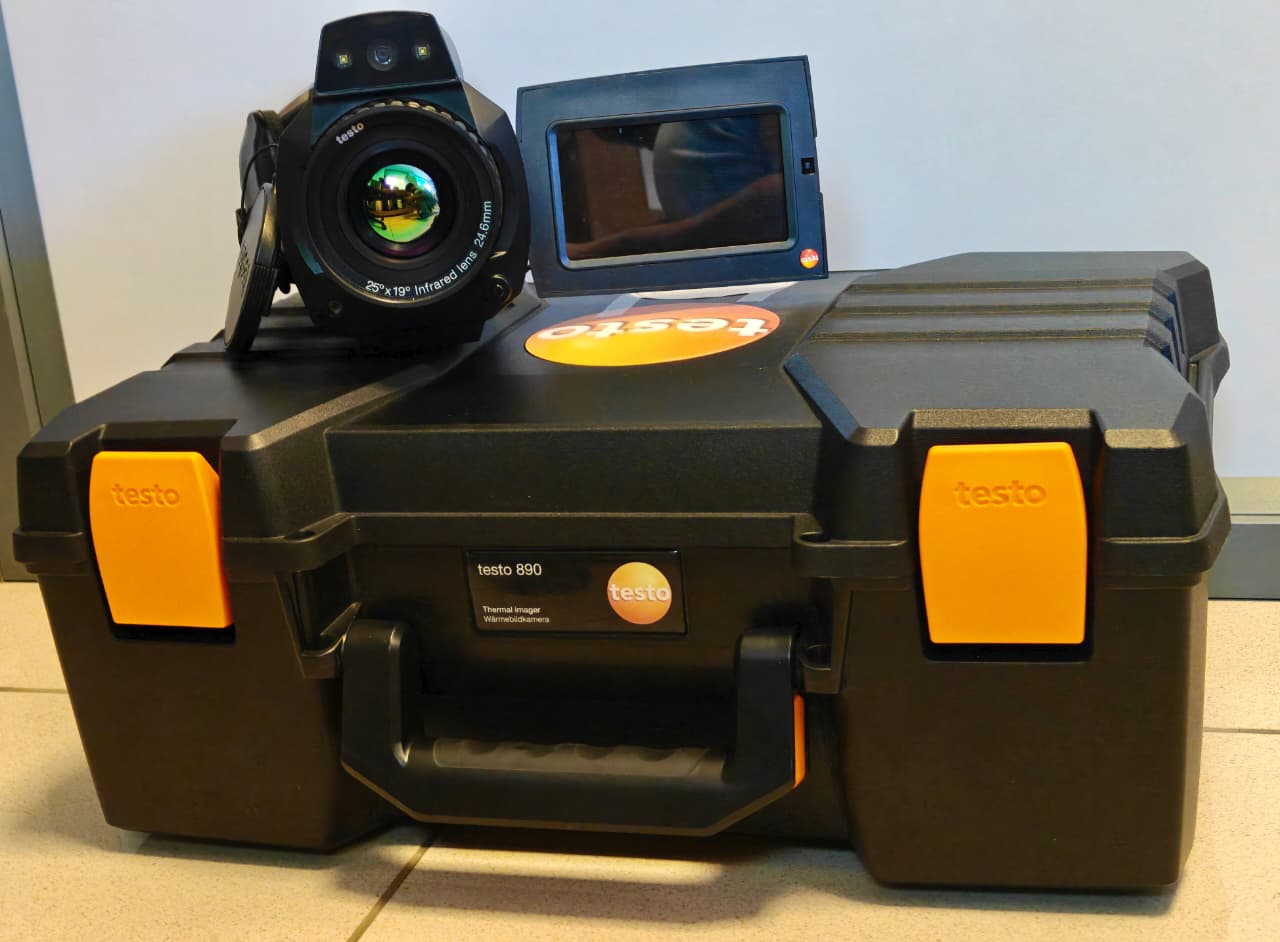

Thermal Imaging Camera (Testo 890) (IR CAMERA)
Make:
Model:
Year of purchase:
Funded by:
Location: Micro/Spectroscopy Lab
Contact email: mslab@cens.res.in
Book New Request
  • • Image display: LCD touchscreen, 10.9 cm (4.3") screen diagonal,
  • • 3.1MP ( 480 x 272 pixels).
  • • Detector type: FPA 640 x 480 pixels
  • • Thermal sensitivity: < 40 mK at 30°C (86°F)
  • • Spectral range: 7.5 to 14 μm
  • • Standard lens: 3.4 mm at 1 m (3.24 ft.) distance
  • • IR/ Real imaging
  • • Laser: 635 nm
  • • Voice recording via Bluetooth
  • • Storage device SD card 2 GB
  • • File formats: .bmt; export option in .bmp; .jpg; .png; .csv; .xls
  • • Measuring temperature range: -30 to 100 oC; 0 to 350oC , 0 to 650 oC, 350 to 1200 oC.
  • • Accuracy: + 2oC
  • • Battery type: Fast-charging Li-ion battery
  • • Measurement range: -30 to 100 °C, 0 to 350 °C, 0 to 650 °C (With high temperature measuring range of 350 to 1200 °C).
  • • Accuracy: ±2 °C
  • • Analysis functions Up to 10 measuring points, hot/cold spot detection, area measurement (min/max/ average value), isotherm, alarm values, up to 5 range selections.
  • • Operating temperature range: 15 °C to +50 °C
  • • Humidity measurement
  • • File format: .bmt, possible export to .bmp, .jpg, .png, .csv, .xls
  • • Video file format (via USB): .wmv, .mpeg-1, vmt (full radiometric video, testo format)
  • • Operating temperature range: -15 to 50°C
  • • Bar code tracking for image specifications
  • • Operations can be don either by joystick or touchscreen.
Modes Duration (hrs)
01 - Academic Institutes 500 (Cu, Al etc); 800 (Au) / 100 mg
03 - External Industry Users 1000 (Cu, Al etc); 1600 (Au) / 100mg
02 - External Industry Partner 750 (Cu, Al etc); 1200 (Au) / 100 mg
Sl. No. - Category Fees ( in Rs/- ) + additional 18% GST
